Digital Package Tearing Testing Equipment , Paper Tear Strength Measuring Machine

Name: Digital Package Tearing Testing Equipment Paper Tear Strength Measuring Machine
Brand: HAIDA
Price: 1 USD

Digital Package Tearing Testing Equipment , Paper Tear Strength Measuring Machine Manufactures

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-A801-1

MOQ : 1 Set

Price : Negotiable

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Capacity : 0~1000mN

Vertical distance between gripper and the pendulum fulcrum : 104 mm

Outside Dimension (L×W×H) : 50×25×37 mm

Weight : 13kg

Design Criteria : TAPPI-T414, JIS-P8116

Intersection angle : 27.5°

Contact Now

Digital Package Testing Equipment , TAPPI-T414 Paper Tear Strength Measuring Machine

Specifications

1.Design Criteria:TAPPI-T414, JIS-P8116
2. Simple operation, reliable performance and advance

The Application

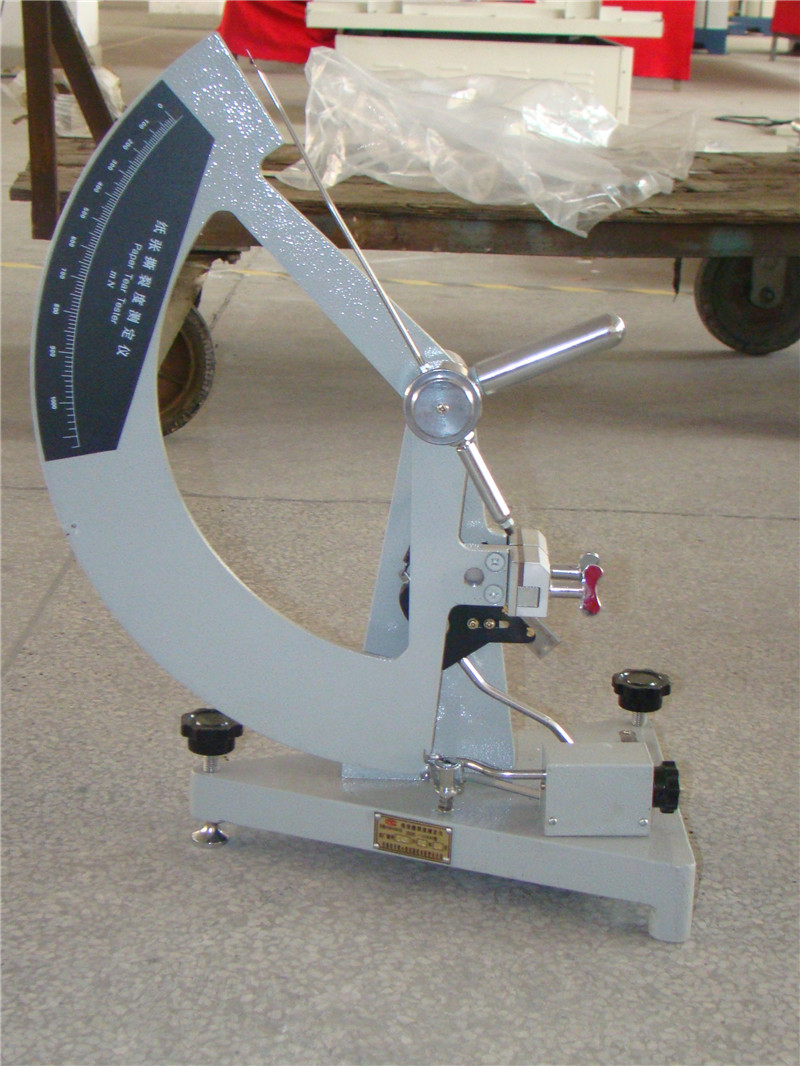

Simple Operation Paper Tear Strength Measuring Machine is used for measuring the internal tear degrees of the paper, and the working principle is to tear the specimen to a specified length and check how much force it cost. Normally the test is to use 16 pieces of paper stacking together and then tear them, then get the force accordingly.

Testing Standards:

Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Nonwovens: ASTM D5734, WSP 100.1

Paper: APPITA P 400, ASTM D 689, BS 4468,CSA D9 ,DIN 53128, EN 21974, ISO 1974

Salient Features:

1. Latest design with modern sophisticated look.

2. Pneumatic operated clamping and pendulum release ensures repeatable test result.

3. The built-in microcomputer handles all calculations and set-up functions.

4. Tearing force displayed digitally.

5. Easily interchangeable pendulums.

6. Selectable units: newton, grams-force, millinewton, lbs-force, percentage of pendulum capacity.

7. Easy to calibrate using the check weights (optional).

8. PC & PRINTER connection.

9. Cutting template supplied for preparing samples.

10. Supplied with calibration & inspection certificates.

The main technical parameters

1. Capacity	16N,64N (By adding Augmenting weight),32N (By adding Augmenting weight)
2. Unit of measurement	cN - N - gf - lbf
3. Distance between Clamps	7.0 ± 0.25 mm
4. Tearing Distance	43 ± 0.15mm
5. Slit Size	20 ± 0.2 mm
6. Tollerance range	20-80 % of each full scale, settable range or full scale
7. Angular resolution	high resolution digital optical encoder
8. Display	LCD display backlight
9. Blade	steel
10. Data port	RS232 port for printer connection and 3 pin Mini-DIN connector for PC.
11. Statistics	force min. max. mean, CV%, St.Deviation, Range%
12. Template Size	As per ASTM standard
13. Dimensions	490 x 430 x 680 mm
14. Power supply	220V, 50Hz or 110V, 60Hz
15. Weight	58 Kg
