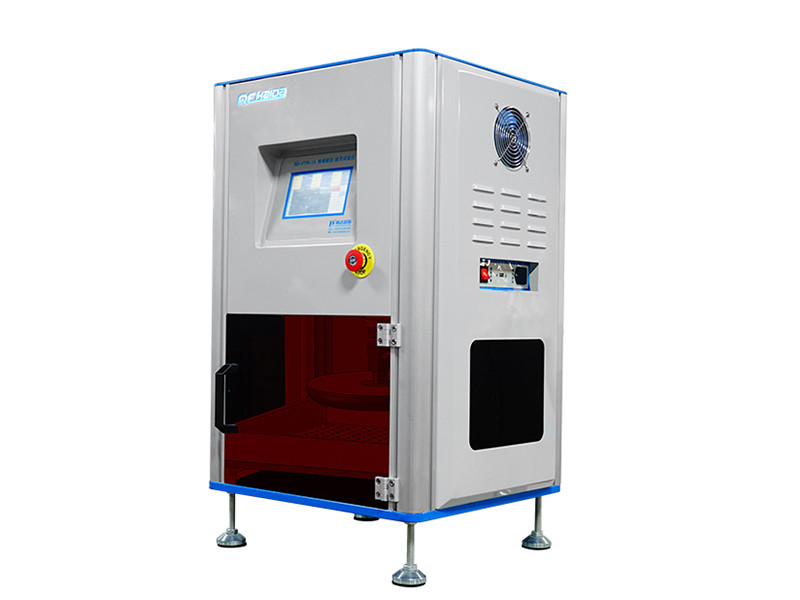

Foam Compression Fatigue Testing Machine For Reciprocating Compression Test

Name: Foam Compression Fatigue Testing Machine For Reciprocating Compression Test
Brand: HAIDA
Price: 1 USD

Foam Compression Fatigue Testing Machine For Reciprocating Compression Test Manufactures

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO,CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-F750-1A

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

power : Electronic

Plane plate : Holes diameter 6mm, space 20mm

use : cellular polymeric materials reciprocating compression test

Maximum sample size : 380×380×150mm

Capacity : 200kg

Counter : 6 digits cycle counter for test cycle setting

Contact Now

Foam Compression Fatigue Testing Machine For Reciprocating Compression Test

MAIN FUNCTIONS:

Durability test: put a square sample into the lower platform of the tester, with a compression plate area smaller than the sample pressure repeatedly concave into the sample, so that each cycle to achieve the maximum load value within the specified range, through a certain number of times, assess the performance of the sample.

Compression hardness test: will square sample into the tester under the platform, the pressure plate with regulation speed down the size of the compression must, in accordance with the requirements of national standard (B, C) A method of testing, load yuan sensing pressure feedback to computer processing, by computer test interface to view data as A result, the sample measured such as sponge, foam material, such as hardness.

Foam Compression Fatigue Testing Machine For Reciprocating Compression Test

GENERL SPECIFICATIONS:

Packaging Dimensions: (W*D*H) 600×500×1080 mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 80kg

HS Code: 9024800000

DESIGN STANDARDS: ISO2439-2008,ISO3385-2014,ASTM_D3574

STANDARD FEATURES

Max capacity	200kg
Plane plate	Holes diameter 6mm, space 20mm
Indentor	Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed	(70 ± 5) times per minute.(adjustable)
Sample size	Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter	6 digits cycle counter for test cycle setting
Display	LCD touch screen
Additional function	Adjust the test position during testing to compensate the force automatically
Dimension(L×W×H)	600×500×1080mm
Power	AC220V±10%, 50/60Hz, single phase
Maximum sample size	380×380×150mm

WHY CHOOSE US?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
