Accelerated Weathering Tester / Xenon Test Machine / Xenon Aging Tester
The usage:
Xenon testing machine is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes. This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Company Services:
All Haida employees adhere to the " Quality comes from precision, quality creates the future " business
philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.
Refrigeration system and compressor:
1.Refrigerating compressor: imported French "taikang" fully enclosed refrigerating unit.
2.Cooling method: air cooling
3.Refrigerant: environmental friendly refrigerant
4.Main refrigeration accessories: Japan "arugong" solenoid valve;American "Emerson" drying filters, etc.
5.Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.
Advantages of refrigeration system:
1.Improved lubrication and lower piston temperature bring greater reliability;
2.Streamlined body to improve airflow management;Reduced pressure, improved refrigeration efficiency;
3.Top discharge valve provides continuous minimum discharge line pulse;
4.SENTRONIC provides reliable lubrication protection system;
5.Use of environmentally friendly refrigerants R23, R404A (excluding CFCS) not prohibited by the Montreal convention or the London amendment
Specifications:
| Exterior material | SUS 201 double layer stainless steel plate |
| Inner material | SUS 304 matt stainless steel plate |
| Insulation material | rigid polyurethane foam + efficient insulation glass wool |
| Sample frame | all made of stainless steel, samples fixed position adjustable, standard stamping forming sample |
| Door | silicone rubber sealing device |
| Model | HD-E711 |
| Studio size (mm) | 750*500*600mm |
| External size (mm) | 1350X1200X1750 (length × depth × height) |
| Temperature range | normal temperature ~80℃ |
| Humidity range | light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
| Temperature of the test blackboard | adjustable from 45℃ to 100℃ (deviation ±3℃) |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature uniformity | ≤±2.0℃ |
| Humidity fluctuation | ≤±2% |
| Glass filter | borosilicate glass |
| Xenon light source | imported air-cooled xenon arc light source xenon lamp |
| Power | 2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours |
| Rainfall time | 1 ~ 9999 minutes, continuous rainfall adjustable |
| Rainfall cycle | 1 ~ 240 minutes, interval (break) rainfall adjustable |
| Spray nozzle aperture | Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking) |
| Spraying period (spraying time/no spraying time) | 18min/102min or 12min/48min(spraying time/no spraying time) |
| Water spraying pressure | force 0.12 ~ 0.15Mpa |
| Water pressure | 0.12 ~ 0.15kpa |
| Sample rack | the size of sample tray is 75×300mm |
| The continuous adjustable time of illumination cycle | s1 ~ 999 hours |
| Xenon lamp spectral wavelength | 290nm ~ 800nm adjustable |
| Irradiance range | 500W ~ 1200W/㎡ adjustable. |
| Distance from arc center to sample | 250 ~ 300mm |
| Effective exposure area | 6400C㎡ |
| Heating power | 4.5kw |
| Humidifying power | 3KW |

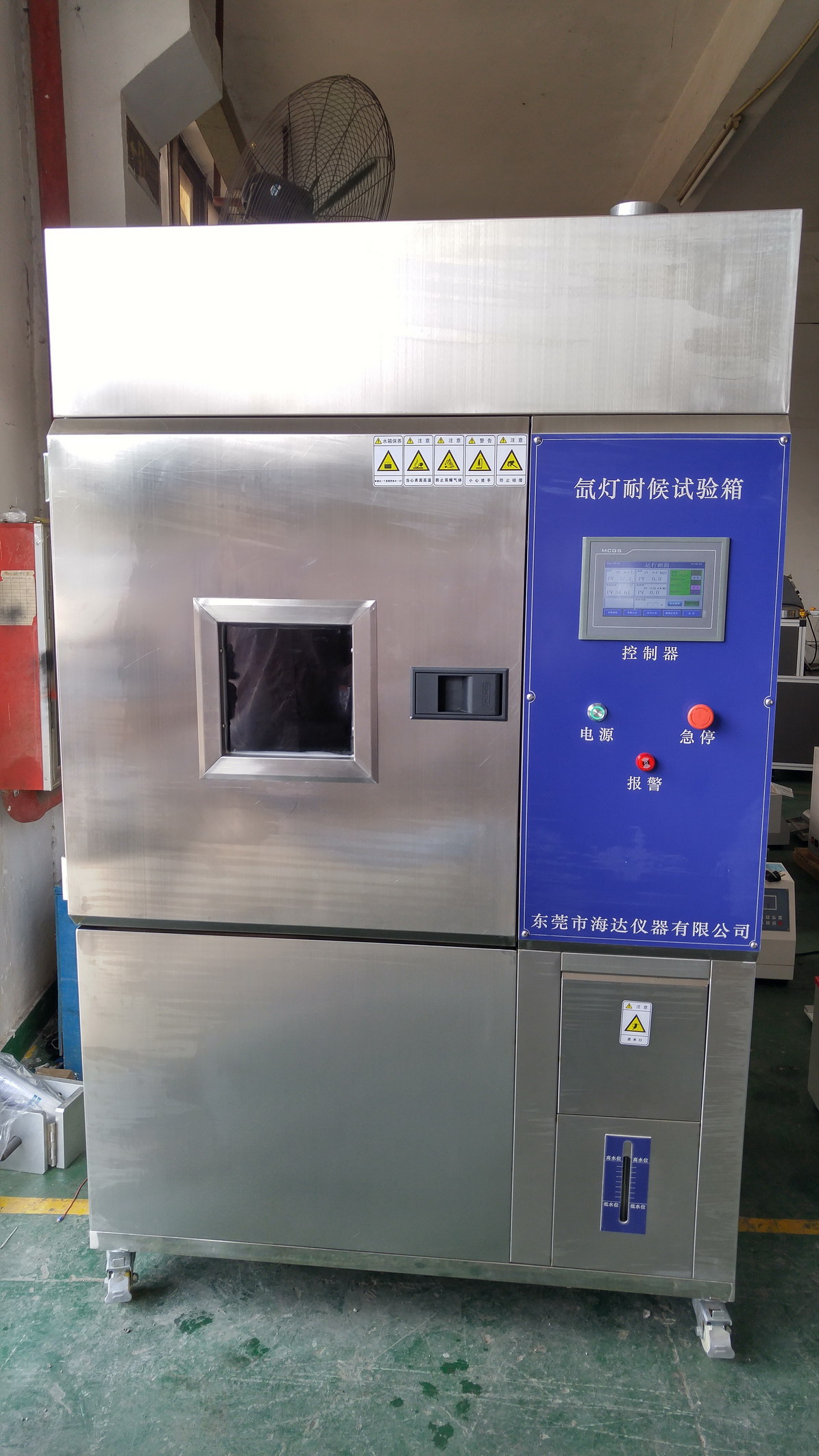

The images of this machine
