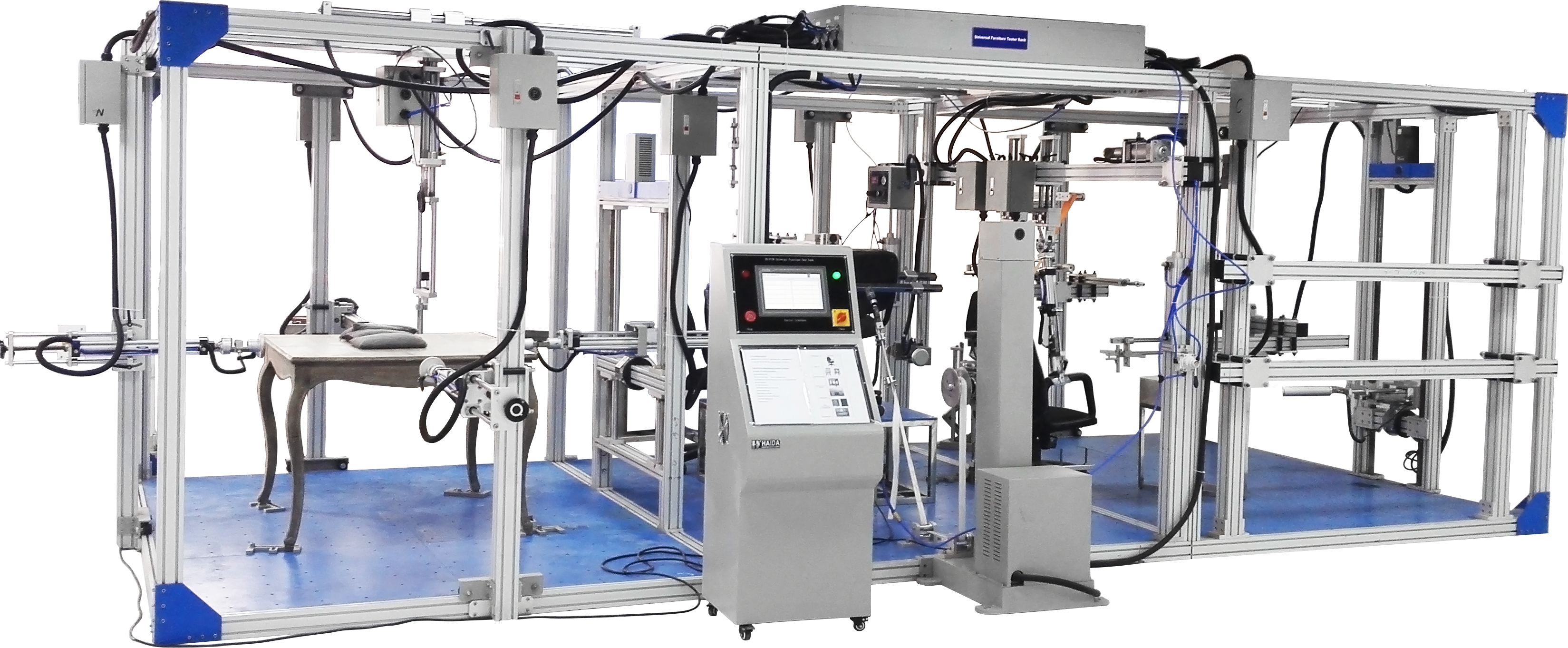

Furniture Structure compression testing machines / horizontal tensile testing machine HD-F742

Name: Furniture Structure compression testing machines horizontal tensile testing machine HDF742
Brand: HAIDA
Price: 1 USD

Furniture Structure compression testing machines / horizontal tensile testing machine HD-F742 Manufactures

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-F742

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

the chair seat surface load capacity : 5~200kg

the chair back loading capacity : 5~100kg

the handrail height adjustment range : 550mm ~ 950mm

the maximum size of specimen width : 1000mm

test speed : 10 ~ 30 /min

the maximum tension value : 150kg

the maximum value of thrust ( level ) : 50kg

Contact Now

Furniture compression testing machines / horizontal tensile testing machine

Product introduction

2 groups of pneumatic actuator can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test .

Detailed description

A comprehensive testing machine , furniture main technical parameters :

Comprehensive test furniture combination is composed of several parts :

1 , the chair seat surface load capacity	5~200kg .
2 , the chair back loading capacity	5~100kg
3 , 2 sets of pneumatic actuators can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test , the two groups of horizontally mounted brake adjustment range for a minimum of 20mm , up to 250mm , maximum thrust is 60kg . brake is on the left and right sides can work independently or simultaneously .
4 , the handrail height adjustment range	550mm ~ 950mm
5 , adjustable thrust , pressure holding time adjustable
6 , the horizontal handrail
7 , the maximum size of specimen width	1000mm
8 , test speed	10 ~ 30 /min
Testing machine bottom drill with a plurality of rows of screw holes , install different accessories and fixed test conditions and convenient
10 , each group of electric actuator is equipped with quick joint , convenientreplacement of different loading block and clamp
11 , the controller of PLC and color touch screen , operation interface is simple and reasonable , the graphical representation is more convenient to use , anyoperator
12 , the machine is equipped with five sets of pneumatic brake , respectively , a set of vertical device , 4 groups of level device , each independent adjustable speed and thrust . The trip is 500mm
Before and after the brake 13 , vertical device can adjust the position , such asclean from 100 mm to 900 mm
Four sets of brake 14 , level device , can be up and down a position adjustmentand move around , flexibly with requirement of different test position
15 , the maximum tension value	150kg
16 , the maximum value of thrust ( level )	50kg
17 , the maximum pressure value ( vertical )	150kg
18 , the desktop impact	impact head weight 25kg
19 , the backrest and armrest impact	angle can be adjusted
20 , can be added with a computer , recording the stress , displacement variation .

EN527-3 , BSEN1730 , EN1335 , EN1022 , EN1728

The chair backrest strength durability test

Chair legs strength test - forward / lateral loading

Pedal ( ring ) - the vertical static load test

Pedal ( ring ) durability test

Arm durability test instrument ( weight : 102kg )
