Paperboard Package Incline shock Impact Strength Test Machine
GENERL SPECIFICATIONS
Packaging Dimensions: 25CBM
Power supply source: three-phase, 380V, 50/60Hz (can be appointed)
Gross Weight: approx. 2800kg
STANDARD SPECIFICATIONS
| Item | Description |
| Load capacity | 600kg (can be customized) |
| Impact surface dimension | 1600*2200mm (can be customized) |
| Rolling carriage table dimension | 1220*1220mm (can be customized) |
| Control system | Touch screen controller |
| Max. slide length | 2200mm (can be customized) |
| Plane inclined to the vertical angle | 10° |
| Velocity range | 1.1~2.3m/s |
| Impact surface material | Rubber wood with two-rail steel track |
| Working condition | Temperature 0~40°, humidity ≤80% (no condensation) |
| Floor area | 7220*1800mm |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
DESIGN STANDARDS
ISTA 3E, 3J & ISTA 6 (inclined impact test)
FEATURES:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
Product Tags:
|
|

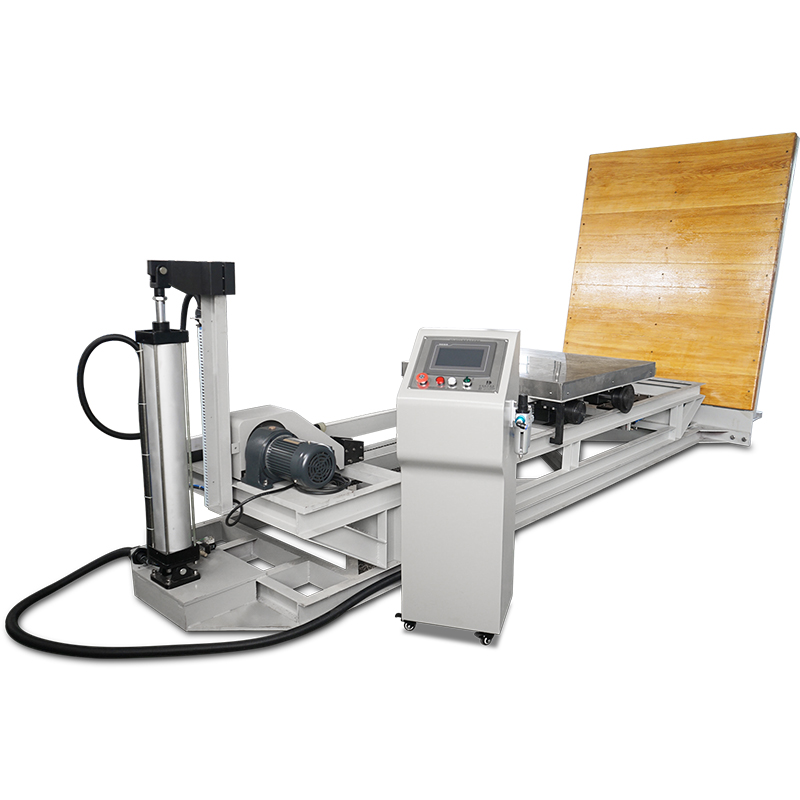

600kg Paperboard Package Incline Shock Impact Strength Test Machine Images
|
